Carbon tube furnace

Horizontal Vacuum Carbon Tube Furnace Product Introduction：

Carbon tube furnace is the use of induction heating furnace, can be done vertical or horizontal, mainly used for high thermal conductivity materials vacuum carbonisation treatment and cemented carbide, powder metallurgy industry to produce a variety of particle size tungsten carbide powder, titanium carbide powder, vanadium carbide powder and other metal powders and composite gold powder foam.

Carbon tube furnace product features：

1. 2400 ℃ ultra-high temperature furnace body, compatible to meet the fine, medium and coarse granular materials WC powder and composite materials carbonisation heating process.

2. The product performance is stable, complete reaction, uniform particles, high carbon content in chemical compound, bottom free carbon content, easy to break and other advantages.

3. Adopting induction heating, there is no direct electric connection between the heating body and the inductor, the wall thickness of the heating body can be thickened arbitrarily, the furnace structure is sturdy, and the service life of the furnace tube is long.

4. Advanced IGBT series induction heating, less high harmonics, less pollution to the power grid, will not interfere with the operation of electronic equipment, energy saving and consumption reduction;

High temperature carbonisation furnace main technical parameters：

1. It is used to produce fine, medium and coarse particles of tungsten carbide powder;

2. Maximum working temperature: 2400℃;

3. the maximum design temperature: 2500 ℃ (continuous time <1 hour);

4. the rate of temperature rise: 5 hours to 2400 ℃;

5. furnace temperature detection: infrared optical thermometer;

6. the furnace working atmosphere: nitrogen or hydrogen;

7. power supply grid: three-phase five-wire system 3N380V/50Hz;

8. rated output power: 200KW;

9. Rated DC voltage: 520V;

10. Rated DC current: 400A;

11. medium frequency: 2500Hz;

12. Cooling water consumption: ≤25M³/h;

13. cooling protection: pressure, water temperature of the cooling water to implement double protection;

14、Furnace body size: φ1150X2570mm;

15, power cabinet size: 2000X1000X2100mm;

16、Volume of heating area: φ430X870 (users can order by themselves).

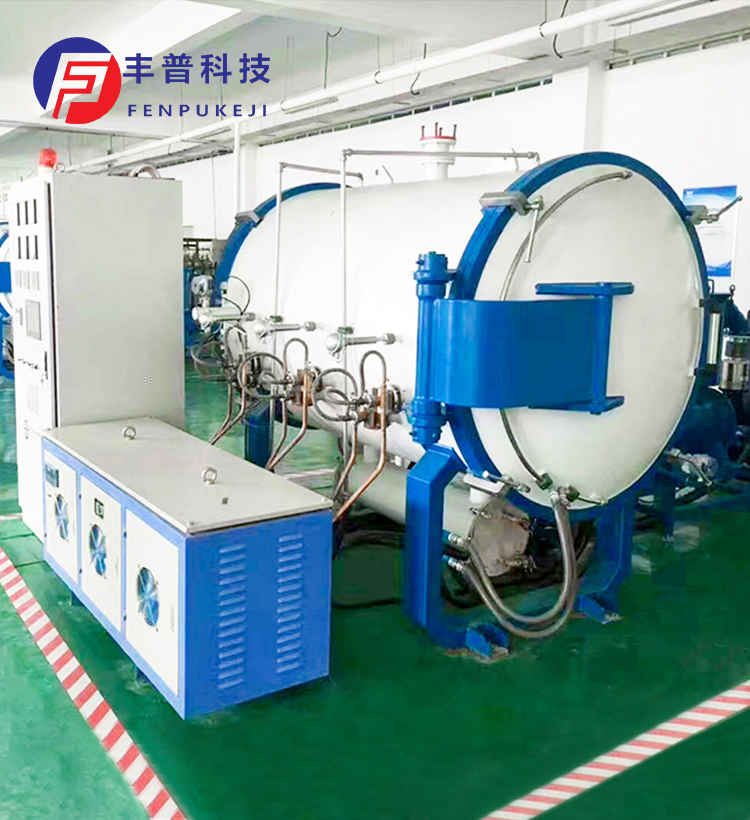

Product Showcase：
